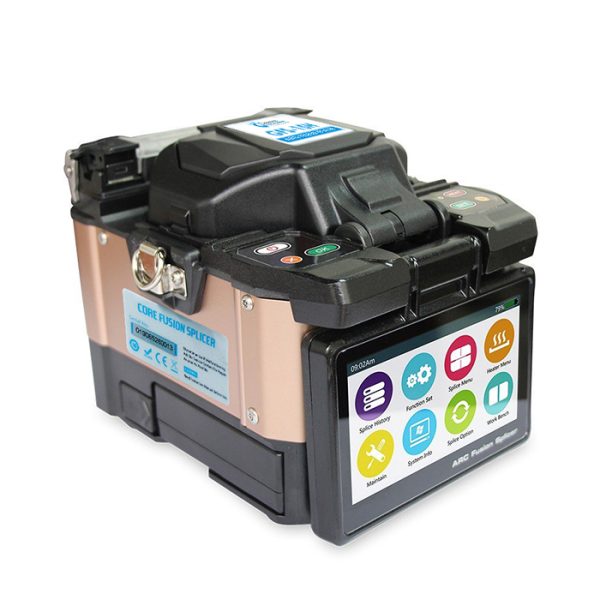

Upgrade your fiber optic installations with the Gamma GFS-9ULTRA Splicing Machine, the ultimate 6 motor core alignment fusion splicer designed for performance, speed, and precision. Built with advanced Japanese components and a reliable Korean chipset, this powerhouse delivers 5-second fast splicing, 11-second auto heating, and seamless core alignment, ensuring flawless connectivity in every splice.
Whether you’re working on FTTx, LAN, CATV, or backbone fiber networks, the GFS-9ULTRA is your perfect partner. It features OPM & VFL functions, a 7200mAh high-capacity battery, a 4.3” touch display, and over 100 splicing modes to meet all types of network demands.
Ideal for professionals seeking unmatched splicing machine performance at a competitive price.
Key Features:
-
✅ 6 Motors Core Alignment System – Enhanced precision for better splice quality
-
✅ Fast Splicing in Just 5 Seconds
-
✅ Auto Heating in 11 Seconds
-
✅ Built-in OPM & VFL (Optical Power Meter & Visual Fault Locator)
-
✅ 4.3” HD Touch Display – Intuitive and easy operation
-
✅ 7200mAh Large Capacity Battery – Up to 320 splice + heat cycles
-
✅ Multi-Gear Adjustable Handle – Ergonomic for various working angles
-
✅ Compatible Connectors: SC / LC / FC / ST
-
✅ Multiple Languages Supported
📦 Standard Configuration (What’s in the Box):
| Item | Quantity |
|---|---|
| Host Splicing Machine (GFS-9ULTRA) | 1 pc |

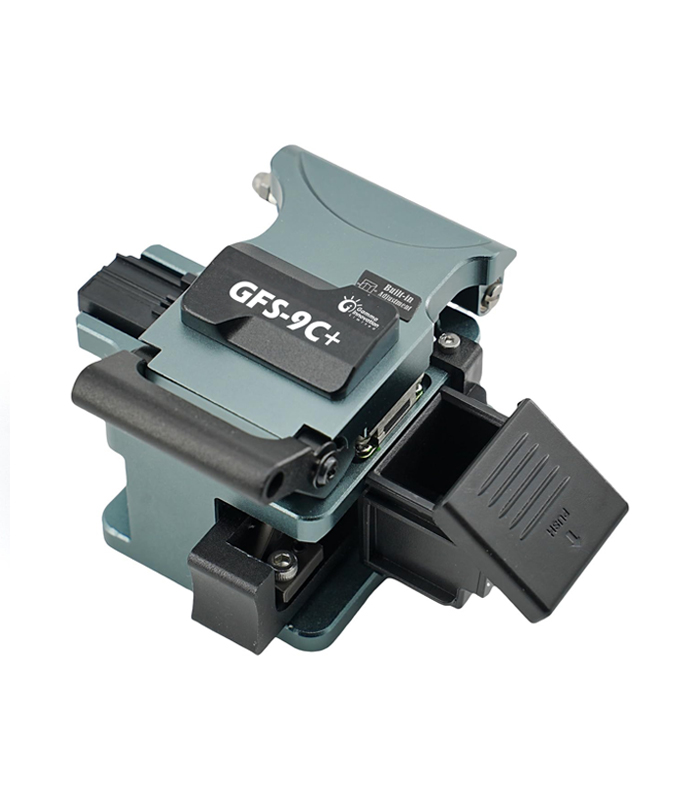

| Fiber Cleaver (GFS-9C+) | 1 pc |
| Battery (TPA-V20) | 1 pc |
| Spare Electrodes | 1 pair |
| Adapter | 1 pc |
| Power Cable | 1 pc |
| Carrying Case | 1 pc |
| Cooling Tray | 1 pc |
| Carrying Straps | 1 pc |
| User Manual | 1 pc |
| Test Report | 1 pc |
| Alcohol Bottle | 1 pc |
| Optional: SOC Fiber Holder, Cleaning Kit, Working Table |
📊 Technical Specifications:
| Parameter | Details |
|---|---|
| Model | GFS-9ULTRA |
| Applicable Fibers | SM, MM, DS, NZDS (ITU-T G.652~G.655) |
| Compatible Cable | 0.25–3.0mm Indoor Cable |
| Cladding Diameter | 80–150 μm |
| Cleaved Length | 8–16 mm |
| Splicing Mode | 21 preset, 100 storable custom modes |
| Typical Splice Loss | ≤ 0.02dB (SM) / 0.01dB (MM) / 0.05dB (NZDS) |
| Return Loss | ≥ 60 dB |
| Heating Tank | 5 thermal settings (20~60 mm) |
| Heating Time | 11 seconds |
| Display | 4.3” HD Touchscreen |
| Magnification | 380X (X,Y,XY) |
| Power Supply | AC 100–240V / DC 12–15V |
| Battery Capacity | 7200mAh |
| Typical Splice + Heat Cycles | Up to 320 |
| Lighting | 2 powerful white LEDs |
| Dimensions (mm) | 135.1(W) × 205.9(L) × 130.4(H) |
| Weight | 1.75kg (with rubber bumper) |
| Operating Environment | -10°C |
| VFL Output | 15mW/2Hz Flash or Constant Light |
| Power Meter Wavelengths | 850/1300/1310/1490/1550/1625 nm |
| Measuring Range | -50 to +26 dBm, ±0.3 dB Accuracy |
🔎 Why Choose GFS-9ULTRA?
-
🧠 Built-in Intelligence: Auto ARC calibration by air pressure and temperature
-
🔋 Battery Beast: Unmatched runtime with 7200mAh cell
-
⚡ High-Speed Processing: Splicing and heating done in under 20 seconds
-
🛠️ Robust Accessories Included: Cleaver, Alcohol bottle, Electrodes, Power Cable, and more
-
🌐 Perfect for Bangladesh Market: One of the best splicer machine price in Bangladesh
