Introducing the GFS-15H Active Cladding Alignment Fusion Splicer – the ideal fusion splicing solution for FTTx networks. Engineered with precision German CNC technique and built-in Japanese components with Korean chipsets, the GFS-15H ensures ultra-fast splicing, high durability, and seamless user experience.
This state-of-the-art splicing machine features a high-resolution 4.3” color LCD touch display with 380X magnification, delivering crystal-clear fiber alignment for accurate and efficient results. Whether you’re working in low light or high-altitude outdoor environments, the GFS-15H is dustproof, waterproof, and heat-resistant – truly built for any condition.
With ultra-fast 6-second splice time and 13-second heating time, this machine is perfect for high-volume jobs. It includes detachable multifunction fixtures compatible with SC, LC, FC, ST fiber types, and supports single fiber splicing for SM, MM, DS, and NZDS fibers.
Key Features:
-
🔹 4 Motor Core Alignment System
-
🔹 3-Second Power-On | 6-Second Splicing | 13-Second Heating
-
🔹 380X Magnification | 4.3″ High-Res Color Display
-
🔹 Dust-proof, Waterproof & Heat-resistant
-
🔹 Built-in Japanese & Korean Core Components
-
🔹 3 Powerful White LEDs + Illuminated Keypad for Night Work
-
🔹 4000mAh Battery (180 Splice & Heat Cycles)
-
🔹 Auto Calibration | 20,000 Record Storage
-
🔹 Detachable Fixture Compatible with SC/LC/FC/ST Fibers
📊 Technical Specifications (Equipment Parameters):
| Parameter | Details |
|---|---|
| Model | GFS-15H |
| Dimension | 130W × 155L × 125H mm (excluding rubber bumper) |
| Weight | 1750g (with battery), 1370g (without battery) |
| Number of Fibers | Single |
| Fiber Compatibility | SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (G.653), NZDS (G.655) |
| Cable Size Supported | 0.25–3.0mm / Indoor Cable |
| Cleaved Length | 8–16mm |
| Cladding Diameter | 80–150μm |
| Splicing Mode | 41 Pre-set modes (Max 100) |
| Heating Mode | 5 Pre-set sleeve heating modes (Max 100) |
| Splice Loss | SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05–0.07dB |
| Return Loss | ≥ 60dB |
| LEDs | 3 High-Power White LEDs |
| Splice Time | Approx. 6 seconds |
| Heating Time | Quick: 13s / Typical: 30s |
| Heating Sleeve Length | 20–60mm |
| Tension Test | 1.96–2.25N |
| Power Supply | AC: 100–240V / DC Input: 12–15V |
| Battery | 4000mAh (180 cycles of splice + heat) |
| Display & Magnification | 4.3” Bi-Directional Color LCD / 380X |
| Storage | 20000 Splicing Records & 200 Images |
| Operating Temp | -10°C to 50°C / Humidity: 0–95% / Max Wind: 15m/s |
| Storage Temp | -40°C to 80°C |
| Calibration | Automatic Air Pressure & Temperature |
| Electrode Life | 5000 Arcs |
| Terminal | Mini USB 2.0 |
Included Accessories:
-
✅ Fusion Splicer GFS-15H
-

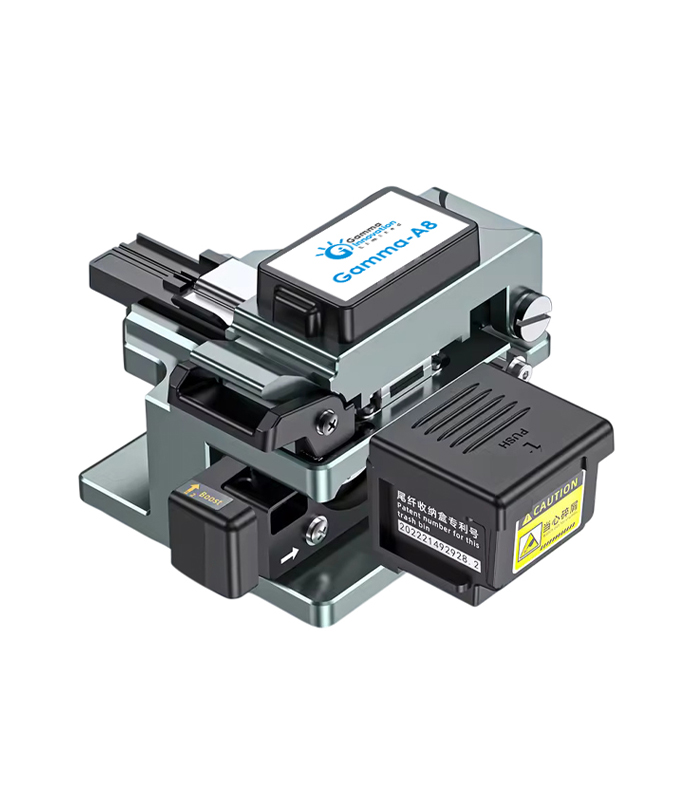

✅ Fiber Cleaver
-
✅ 4000mAh Battery
-
✅ Power Adapter & AC Power Line
-
✅ Cooling Tray
-
✅ Spare Electrode
-
✅ Carrying Case & Strap
-
✅ Fiber Stripper + Drop Cable Stripper
-
✅ Test Report
-
✅ Alcohol Bottle
-
✅ User Manual
Why Choose the GFS-15H Fusion Splicer?
-
Perfect for FTTx applications
-
Stable, Intelligent & Economic model
-
Durable design for outdoor and field use
-
Best splicer machine price in Bangladesh
